Orion HCCA3000.1DSPLX HCCA

NIB: Orion HCCA 3000.1 -

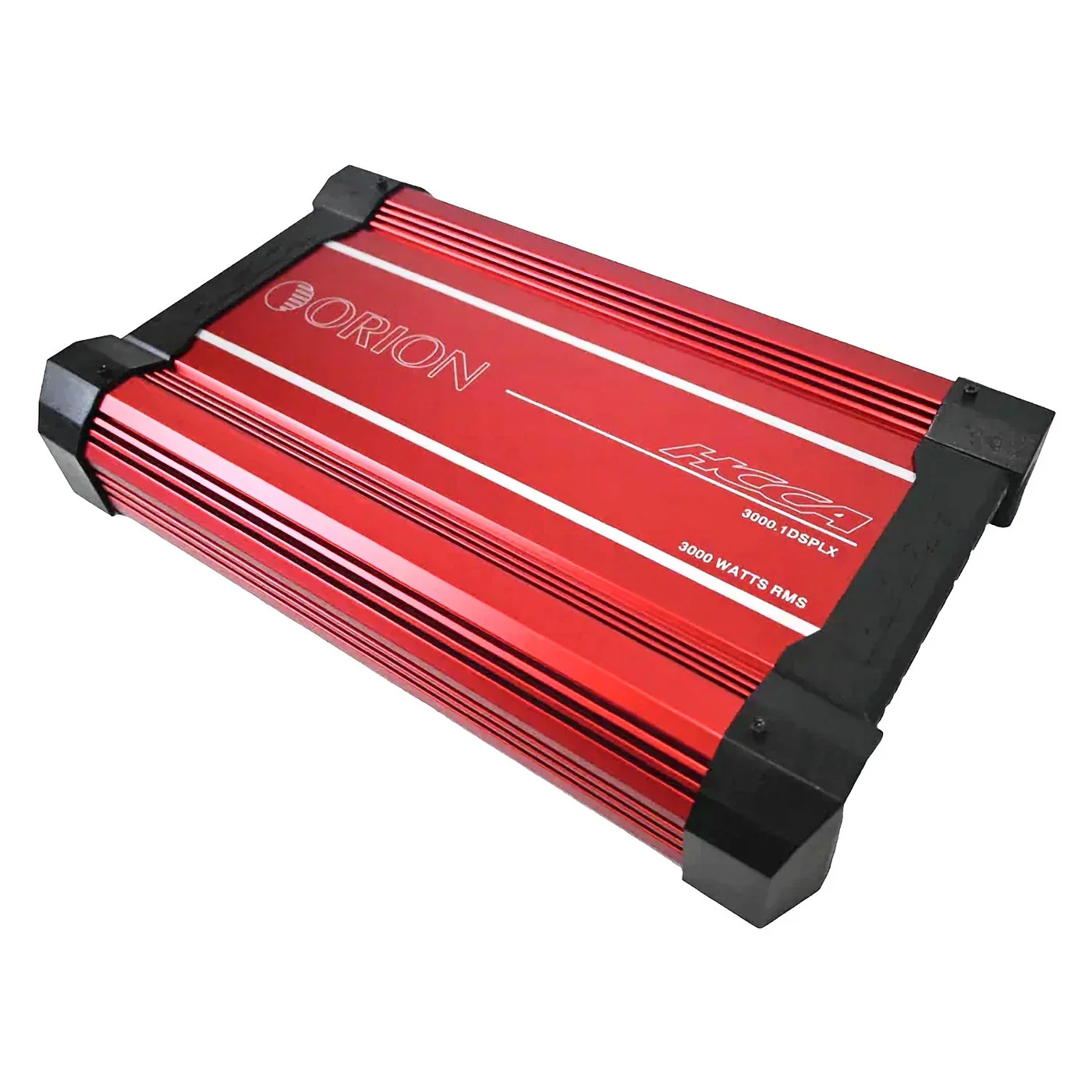

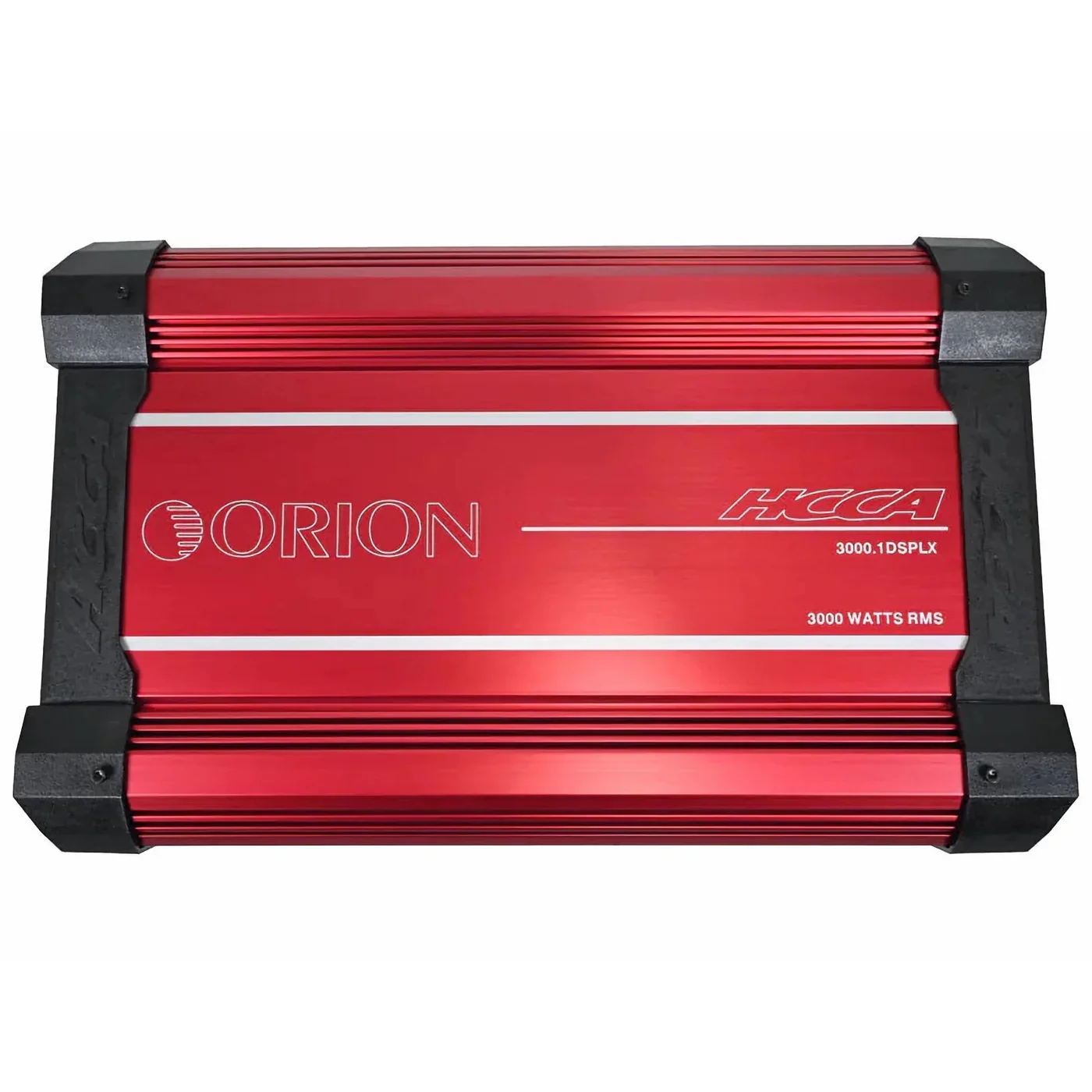

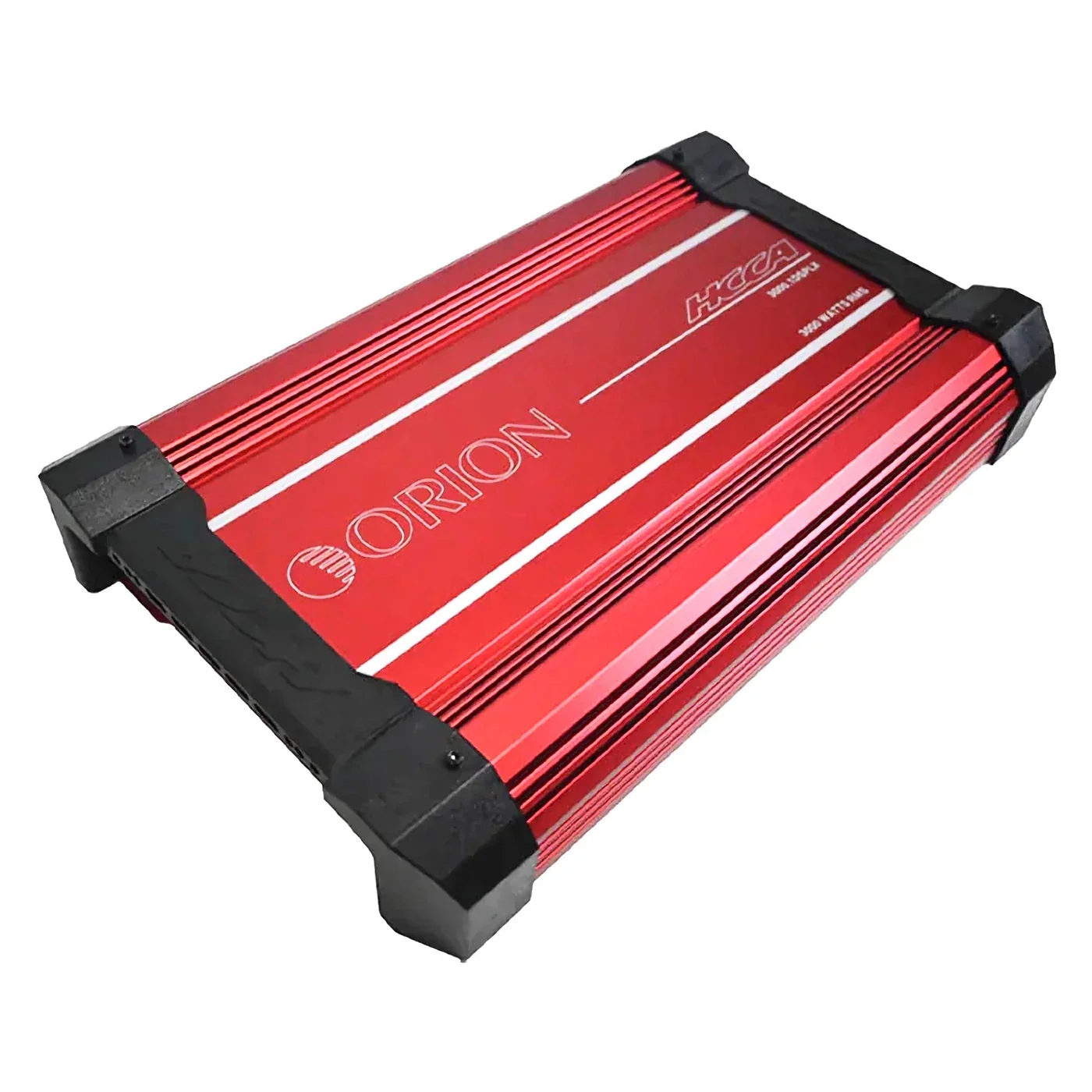

The HCCA3000.1DSPLX Class D Orion HCCA Amplifier​ is built for those who demand nothing less than competition-level performance. Delivering an astounding 3,000 watts RMS at 1 ohm, this amplifier is engineered to dominate SPL competitions with ground shaking bass and crisp, clear sound. Featuring the iconic HCCA red design, it not only performs like a beast but looks the part too, adding a sleek, bold statement to your audio setup.

Power Ratings

• -‍ RMS Power @ 4 Ohms @ 0.5% THD+N: 1350W

• - RMS Power @ 2 Ohms @ 0.5% THD+N: 2100W

• - RMS Power @ 1 Ohm @ 0.5% THD+N: 3000W

• - strapped power -

•   RMS Power @ 2 Ohms @ 0.5% THD+N: 6000W

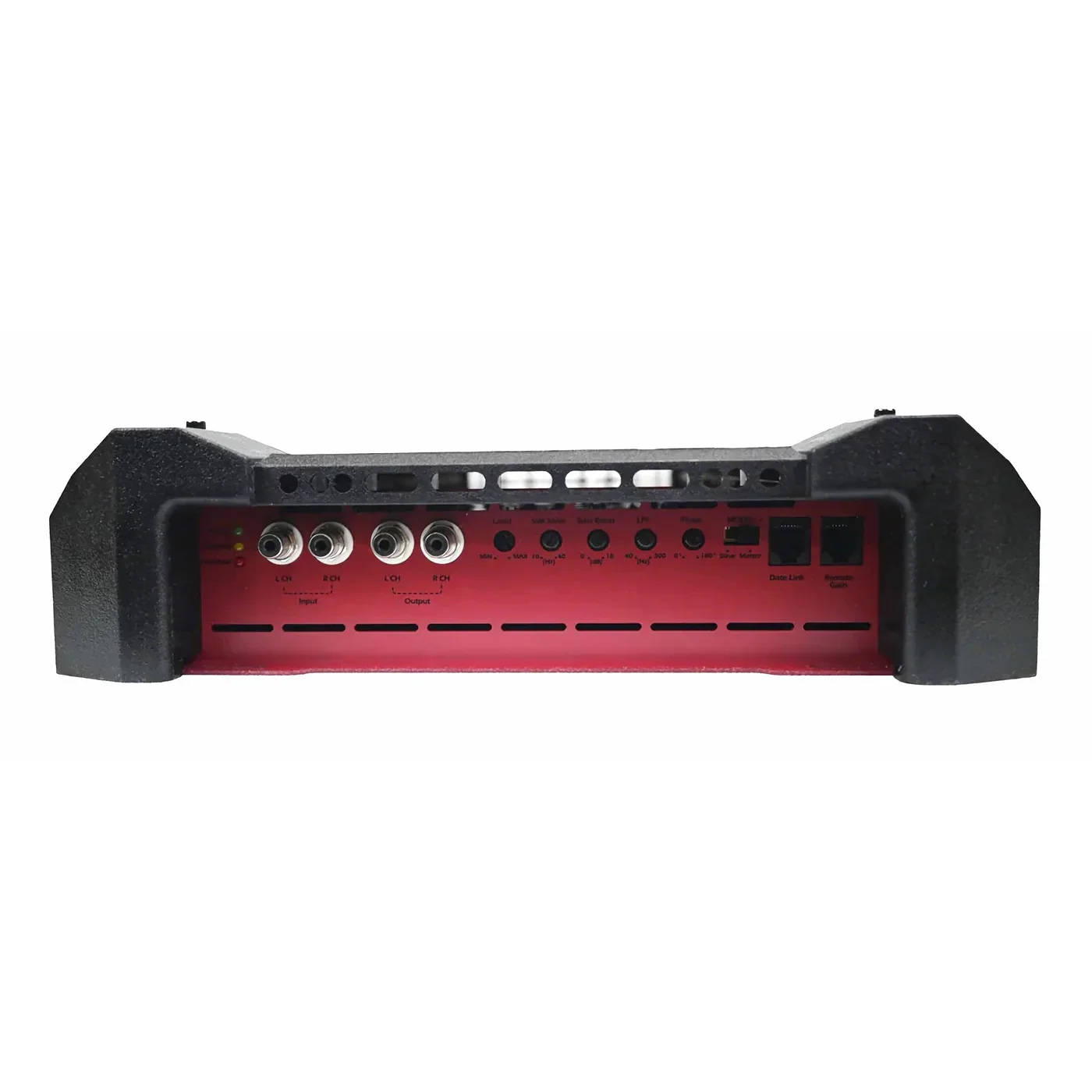

•  POWER TERMINAL MANAGEMENT

•   Positive Terminals: 3 x 0 AWG

•   Negative Terminals: 3 x 0 AWG

•   Remote Turn-On Signal: 10 AWG

•   Speaker Output Terminals: 4 AWG

  Specifications

  • Frequency Response: 15Hz - 250Hz

  • Low Pass Crossover: 40Hz - 300Hz

  • Supply Voltage: 9 - 16V

  • Amplifier Efficiency: >88%

  • Damping Factor: 200dB

  • Signal to Noise Ratio: >90dB

  • T.H.D. & Noise: 0.5%

  • Input Impedance: 24K Ohms

  • Phase Shift: 0 - 180

  • Bass Boost: 0-18dB Variable

  • Subsonic Filter: 10 - 40Hz

  • Variable Input Level Control: 0.2V - 6.0V

  • Fuses: 350A recommended (not included)

  • Dimensions (L x W x H): 18.89" x 11.89" x 3.15"

  ‍
